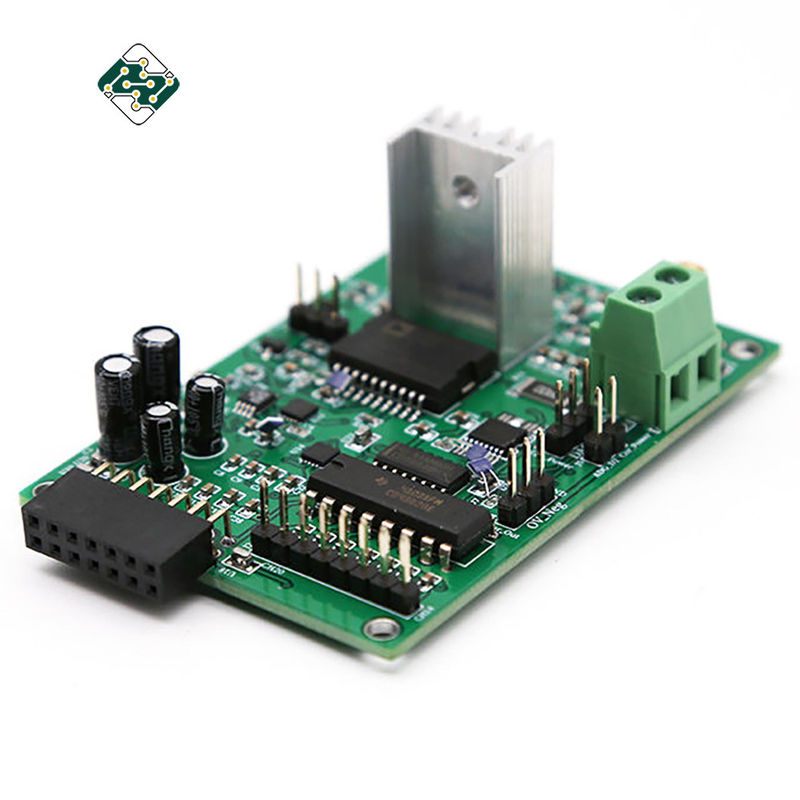

OEM Mixed DIP PCB SMD Assembly Service With Flying Probe Test

Product Description:

PCBA Circuit Board, a product of pcb fabrication services, is a multilayer printed circuit board with a minimum line width/space of 4/4mil and a minimum hole size of 0.2mm. It can be delivered within 7-10 days and has a surface treatment of ENIG: Au 0.03um - 0.15um. PCB board assembly is also available for this product.

Features:

• Product Name: PCBA Circuit Board
• Layer: 1-52 Layers
• Min Hole Size: 0.2mm
• Design Software: PROE/ Solidworks/ Rhino3D/ CAD/ UG
• DIP Capacity: 0.35Million Points/Day
• Product Type: PCBA Circuit Board
• PCB Fabrication Services: Universal Printed Circuit Board

Technical Parameters:

Applications:

OEM Customized PCBA Circuit Board,model number HKCC2303YH215, is produced under the certifications of ISO9001/SGS/CE/ROHS. It is offered with a minimum order quantity of 5 pieces and a price range of USD0.5-USD100. The packaging details consist of an inner bubble bag and an outer standard carton box. The delivery time is around 20 workdays after payment is made with T/T. The supply ability is 10000PCS/WEEK. The solder mask color is green and the product has been tested with flying probe test. The material is FR4/aluminum and the etched pad tolerance is 288 ± 5 ℃ , 10S , 3times. It is widely used in PCB board assembly, printed circuit board PCB assembly, multilayer printed circuit board assembly, surface mount soldering, PCB assembly service, etc.

Customization:

Support and Services:

We offer comprehensive technical support and service for PCBA Circuit Board products. Our team of experienced engineers is available to provide assistance with any technical questions or issues you may have. We provide a wide range of services, including design consulting, troubleshooting, testing, and more.

Our technical support team is available via email and phone to help you get the most out of your PCBA Circuit Board. We strive to provide excellent customer service and will work with you to ensure your satisfaction. We can provide detailed technical documentation for our products, as well as step-by-step instructions and tutorials.

If you need help with installation or repair, our technical support team is available to provide assistance. We can provide remote diagnostics and troubleshooting, as well as on-site support. Our team can also provide advice on best practices to ensure your PCBA Circuit Board is working properly.

We take pride in providing high-quality technical support and service for PCBA Circuit Board products. Our team is committed to helping you get the most out of your purchase and will work with you to ensure your satisfaction. If you have any questions or concerns, please do not hesitate to contact us.

Packing and Shipping:

Packaging and Shipping for PCBA Circuit Board:

• The PCBA Circuit Board will be securely wrapped in heavy-duty bubble wrap to protect it from damage during shipping.
• The package will be placed in a cardboard box and sealed with packing tape.
• The package will be shipped via a reputable courier service, with tracking and insurance.

FAQ:

• Q: What is the Brand Name of the PCBA Circuit Board?
• A: The Brand Name is OEM Customized.
• Q: What is the Model Number of the PCBA Circuit Board?
• A: The Model Number is HKCC2303YH215.
• Q: Where is the Place of Origin for the PCBA Circuit Board?
• A: The Place of Origin is China.
• Q: What Certifications does the PCBA Circuit Board hold?
• A: The PCBA Circuit Board holds ISO9001/SGS/CE/ROHS Certifications.
• Q: What is the Minimum Order Quantity for the PCBA Circuit Board?
• A: The Minimum Order Quantity is 5pcs.
• Q: What is the Price of the PCBA Circuit Board?
• A: The Price of the PCBA Circuit Board is USD0.5-USD100.
• Q: How is the PCBA Circuit Board Packaged?
• A: The PCBA Circuit Board is Packaged with Inner packing :bubble bag Outer packing : Standard carton box.
• Q: How Long is the Delivery Time for the PCBA Circuit Board?
• A: The Delivery Time is 20 workdays.
• Q: What are the Payment Terms for the PCBA Circuit Board?
• A: The Payment Terms are T/T.
• Q: What is the Supply Ability for the PCBA Circuit Board?
• A: The Supply Ability is 10000PCS/WEEK.
