Product Details
Place of Origin: China
Brand Name: OEM Customized
Certification: ROHS, CE, ISO9001, ISO13485
Model Number: HKCC2303YH234
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD1-USD100
Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 5000PCS/WEEK
Layer Bias: |
±0.076mm |
Version Bend: |
≤0.5% |
Minimum Margin Oil Bridge: |
0.05mm |
Hole Copper Thickness: |
≥35Rm |
Min. Hole Size: |
0.2mm |
Impedance Control: |
≥250hm |
Minimum Line Width Distance: |
0.075mm |
Min. Line Spacing: |
3mil |
Layer Bias: |
±0.076mm |
Version Bend: |
≤0.5% |
Minimum Margin Oil Bridge: |
0.05mm |
Hole Copper Thickness: |
≥35Rm |
Min. Hole Size: |
0.2mm |
Impedance Control: |
≥250hm |
Minimum Line Width Distance: |
0.075mm |
Min. Line Spacing: |
3mil |

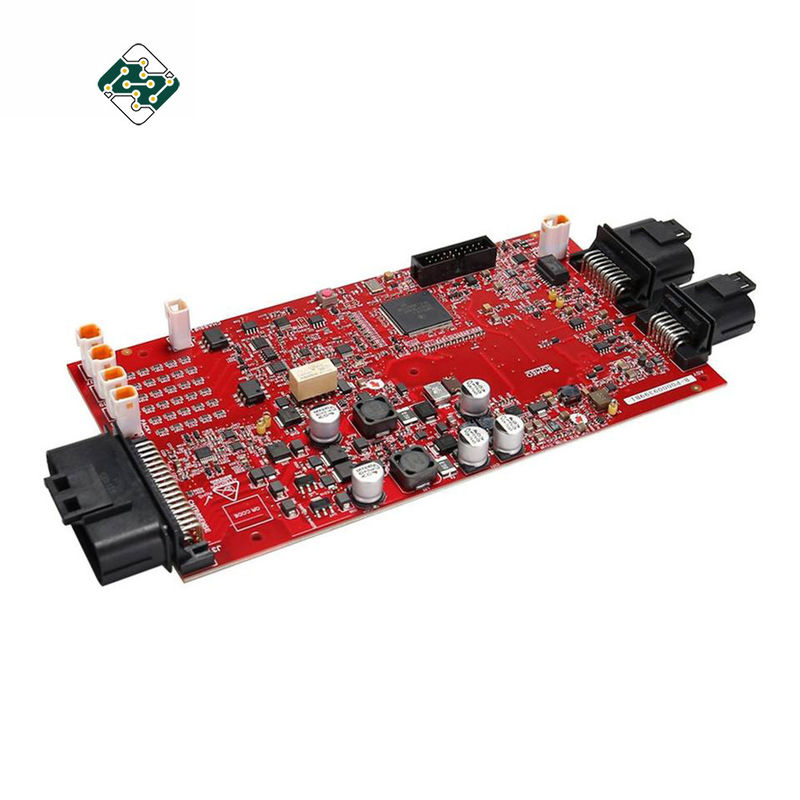

Automated PCB Board Loading And Soldering For Smart Home Appliance Control Panels
Files and requirment for PCBA quotation
A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
A PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements
PRODUCT PARAMETERS
|
Peel Strength |
≥12.3N/CM |
|
Minimum Line Width Distance |
0.075mm |
|
Impedance Control |
≥250hm |
|
Minimum Margin Oil Bridge |
0.05mm |
|
Min. Line Spacing |
3mil |
|
Layer Bias |
±0.076mm |
|
Etching tolerance |
± 0.02mm |
|
Minimum Aperture |
0.1mm |
|
Hole Copper Thickness |
≥35Rm |
|
Minimum Welding Ring |
≥0.125mm |
PCB board manufacture and PCBA service:
PCB board made, circuit board parts purchased by us
Electronic testing circuit board or PCBA
Fast delivery,anti-static package
RoHC Directive-compliant, lead-free
One stop service from PCB design,PCB layout,PCB manufacture,components purchasing
PCB assembly,test,packing and PCB delivery
Electronic manufacturing service
FAQ:
Q1: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q3. How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5 days to arrive.
