Product Details
Place of Origin: China
Brand Name: OEM Customized
Certification: ROHS, CE, ISO9001, ISO13485
Model Number: HKCC2303YH235
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD1-USD100
Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 5000PCS/WEEK
Layer Bias: |
±0.076mm |
Version Bend: |
≤0.5% |
Minimum Margin Oil Bridge: |
0.05mm |
Hole Copper Thickness: |
≥35Rm |
Min. Line Width: |
4mil (0.1mm) |
Profiling: |
Punching, Routing, V-CUT, Beveling |
Shape Tolerance: |
±0.13 |
Surface Finishing: |
LF-HASL\OSP\immersion Gold/ENIG |
Layer Bias: |
±0.076mm |
Version Bend: |
≤0.5% |
Minimum Margin Oil Bridge: |
0.05mm |
Hole Copper Thickness: |
≥35Rm |
Min. Line Width: |
4mil (0.1mm) |
Profiling: |
Punching, Routing, V-CUT, Beveling |
Shape Tolerance: |
±0.13 |
Surface Finishing: |
LF-HASL\OSP\immersion Gold/ENIG |

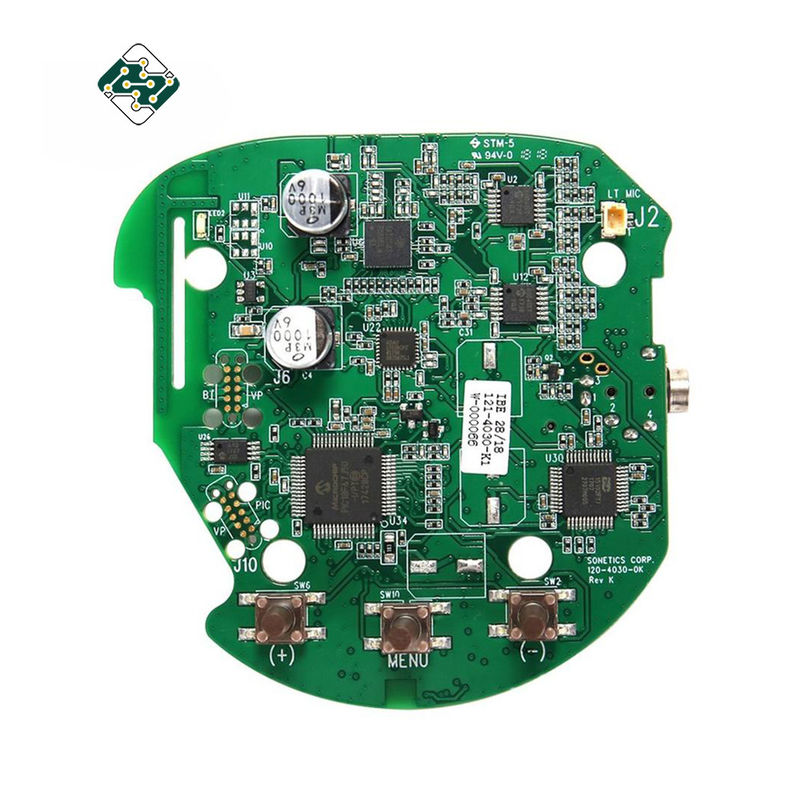

PCB OEM Treadmill Control Board Assembled Pcb Motherboard Pcba Treadmill Circuit Board
Files and requirment for PCBA quotation
A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
A PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements
PRODUCT PARAMETERS
|
Surface Finishing |
LF-HASLOSPimmersion Gold/ENIG |
|
Shape tolerance |
±0.13 |
|
Profiling |
Punching, Routing, V-CUT, Beveling |
|
Minimum Margin Oil Bridge |
0.05mm |
|
Min. Line Spacing |
3mil |
|
Min. Line Width |
4mil (0.1mm) |
|
Etching tolerance |
± 0.02mm |
|
Minimum Aperture |
0.1mm |
|
Solder mask |
Green, white, black, blue, red, yellow |
|
Testing methods |
AOI, X-Ray, SPT, IPQC, OQC etc |
PCB board manufacture and PCBA service:
PCB board made, circuit board parts purchased by us
Electronic testing circuit board or PCBA
Fast delivery,anti-static package
RoHC Directive-compliant, lead-free
One stop service from PCB design,PCB layout,PCB manufacture,components purchasing
PCB assembly,test,packing and PCB delivery
Electronic manufacturing service
FAQ:
Q1: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q3. How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5 days to arrive.
