Product Details
Place of Origin: China
Brand Name: OEM Customized
Certification: ISO9001/SGS/CE/ROHS
Model Number: HKCC2303YH239
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD1-USD100
Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 5000PCS/WEEK
Application: |
Remote Control Smart Home |
PCB Type: |
Hard, Flexible, Rigid-flexible |
Solder Mask Color: |
Black.Red.Yellow.White.Blue.Green |
Maximum Board Size: |
640mm*1100mm |
Impedance Control: |
50/90/100±10% Ohm |
Base Material: |
FR-4/CEM-1/CEM-3/FR1/aluminum |
PTH Finish Hole Size: |
+/-0.003'' |
Testing Service: |
AOI, X-Ray, ICT, Function Test |
Application: |
Remote Control Smart Home |
PCB Type: |
Hard, Flexible, Rigid-flexible |
Solder Mask Color: |
Black.Red.Yellow.White.Blue.Green |
Maximum Board Size: |
640mm*1100mm |
Impedance Control: |
50/90/100±10% Ohm |
Base Material: |
FR-4/CEM-1/CEM-3/FR1/aluminum |
PTH Finish Hole Size: |
+/-0.003'' |
Testing Service: |
AOI, X-Ray, ICT, Function Test |

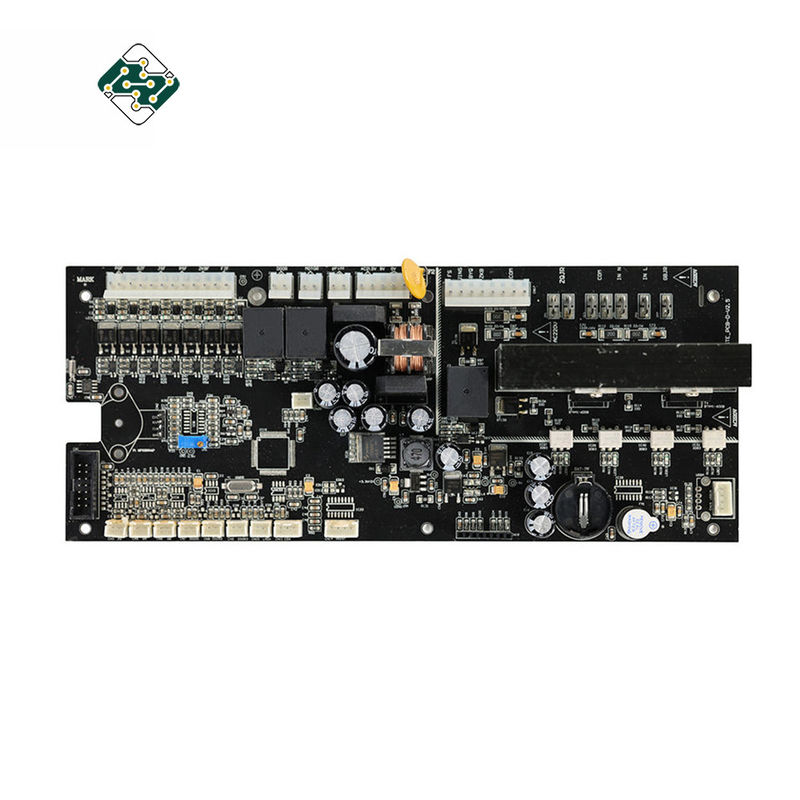

Top Producer Oem Smart Home Pcba Industrial Control Manufacturer Long Range Metal Detector Integrated Pcb
Files and requirment for PCBA quotation
A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
A PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements
PRODUCT PARAMETERS
|
PTH Finish Hole Size |
+/-0.003'' |
|
Shape tolerance |
±0.13 |
|
Solder mask color |
Black.Red.Yellow.White.Blue.Green |
|
Base Material |
FR-4/CEM-1/CEM-3/FR1/aluminum |
|
Min. Line Spacing |
3mil |
|
Impedance control |
50/90/100±10% ohm |
|
PCB type |
Hard, flexible, rigid-flexible |
|
Maximum board size |
640mm*1100mm |
|
Standard |
IPC-A-610G CLASS II&III |
|
NPTH Finish Hole Size |
+/-0.002" |
PCB board manufacture and PCBA service:
PCB board made, circuit board parts purchased by us
Electronic testing circuit board or PCBA
Fast delivery,anti-static package
RoHC Directive-compliant, lead-free
One stop service from PCB design,PCB layout,PCB manufacture,components purchasing
PCB assembly,test,packing and PCB delivery
Electronic manufacturing service
FAQ:
Q1: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q3. How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5 days to arrive.
