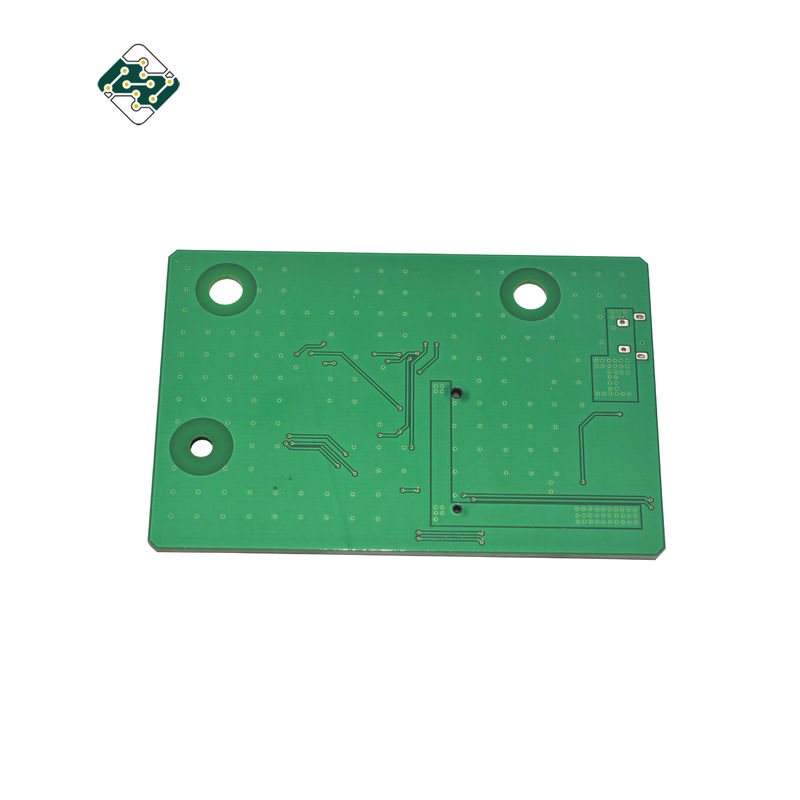

ISO9001 Printed PCBA Circuit Board Assembly Multilayer Practical

Product Details

Place of Origin: China

Brand Name: OEM Customized

Certification: ISO9001/ISO14001/CE

Model Number: HKCC2211YH14

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD10-USD100

Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box

Delivery Time: 20 workdays

Payment Terms: L/C, T/T

Supply Ability: 5000PCS/WEEK

Get Best Price
Highlight:

ISO9001 PCBA Circuit Board

,

Multilayer PCBA Circuit Board

,

Practical PCB Board Assembly

Number Of Layer:
1,2,4,6,Up To 22 Layers
Min Drill Hole Diameter:
0.01'',0.25mm.or 10 Mil
Board Material:
FR-4, Glass Epoxy, FR4 High Tg, Rohs Compliant, Aluminum, Rogers
Copper Thickness:
0.5-8 Oz
Max Dimension:
600 X 1200mm
Supplier Type:
OEM PCBA Manufacturer
Solder Mask Color:
Green ,Yellow ,Red ,White ,Blue ,Black,Orange
Material:
94v0 FR4
Number Of Layer:
1,2,4,6,Up To 22 Layers
Min Drill Hole Diameter:
0.01'',0.25mm.or 10 Mil
Board Material:
FR-4, Glass Epoxy, FR4 High Tg, Rohs Compliant, Aluminum, Rogers
Copper Thickness:
0.5-8 Oz
Max Dimension:
600 X 1200mm
Supplier Type:
OEM PCBA Manufacturer
Solder Mask Color:
Green ,Yellow ,Red ,White ,Blue ,Black,Orange
Material:
94v0 FR4
ISO9001 Printed PCBA Circuit Board Assembly Multilayer Practical
Circuit Manufacturer Pcb Boards Assemble Multilayer Printed Circuit Prototype Board

Product Description



Files and Requirment for PCB,PCBA quotation:

  • A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
  • PCB Gerber files.
  • A PCB fabrication drawing and PCBA assembly drawing.
  • Test procedures.
  • Any mechanical restrictions such as assembly height requirements
  • PCB board manufacture and PCBA service:
    • o PCB board made, circuit board parts purchased by us
    • o Electronic testing circuit board or PCBA
    • o Fast delivery, anti-static package
    • o RoHS Directive-compliant, lead-free
    • o One stop service from PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
    • o Eleectronic manufacturing service
  • Detailed terms for PCB assembly:
    • o Technical requirement:
      • § Professional surface-mounting and through-hole soldering technology
      • § Various sizes like 1206, 0805, 0603 components SMT technology
      • § ICT (In Circuit Test), FCT (Functional Circuit Test) technology
      • § PCB assembly with UL, CE, FCC, RoHS approval
      • § Nitrogen gas reflow soldering technology for SMT
      • § High standard SMT and solder assembly line
      • § High density interconnected board placement technology capacity
    • o Quote requirement:
      • § Gerber file and Bom list
      • § Clear pics of pcba or pcba sample for us
      • § Test method for PCBA
    • o PCB specification:
      • § Layer: 1 to 12 layers
      • § Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2,Aluminum etc.
      • § Max. finished thickness: 0.2 to 4.0mm (0.02 ~ 0.25)
      • § Max. finished board side: 500 x 500mm (20 x 20”)
      • § Min. drilled hole size: 0.25mm (10mil)
      • § Min. line width: 0.10mm (4mil)
      • § Min. line spacing: 0.10mm (4mil)
      • § Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
      • § Copper thickness: 0.5 to 3.0 oz
      • § Solder mask color: green/black/white/red/blue
      • § Inner packing: plastic bag
      • § Outer packing: standard carton packing
      • § Hole tolerance: PTH: ±0.076, NTPH: ±0.05
      • § Certificate: UL, ISO 9001, ISO 14001, RoHS,UL
      • § Profiling punching: routing, V-cut, beveling
      • § Providing OEM service to all sorts of printed circuit board assembly
Outer packing standard carton packing
Hole tolerance PTH: ±0.076, NTPH: ±0.05
Profiling punching routing, V-cut, beveling
Layer 1 to 12 layers
finished thickness 0.2 to 4.0mm (0.02 ~ 0.25″)
finished board side 500 x 500mm (20 x 20")
Min. drilled hole size 0.25mm (10mil)
Min. line width 0.10mm (4mil)
Min. line spacing 0.10mm (4mil)
Surface finish/treatment HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold

ISO9001 Printed PCBA Circuit Board Assembly Multilayer Practical 0ISO9001 Printed PCBA Circuit Board Assembly Multilayer Practical 1
