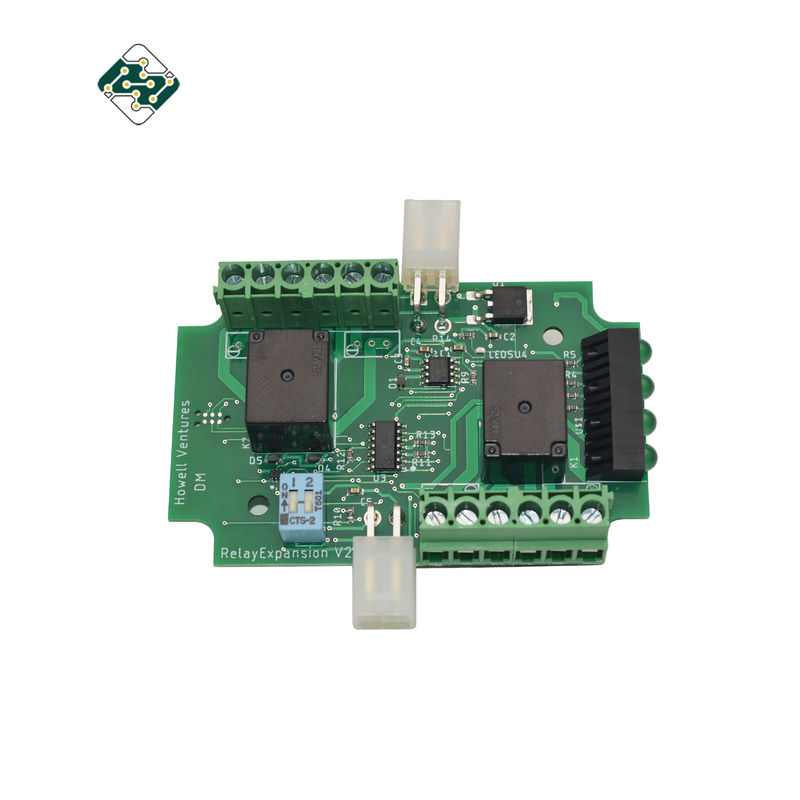

OEM Printed PCBA Circuit Board Assembly HASL Lead Free For Electronic

Product Details

Place of Origin: China

Brand Name: OEM

Certification: ISO9001/ISO14001/CE

Model Number: HKCC2211YH16

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD10-USD100

Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box

Delivery Time: 20 workdays

Payment Terms: T/T, Western Union

Supply Ability: 5000PCS/WEEK

Get Best Price
Highlight:

OEM PCBA Circuit Board

,

HASL PCBA Circuit Board

,

Electronic Printed Circuit Board PCB Assembly

PCB Cutting:
Shear,V-score,Tab-routed
Surface Finish:
HASL Lead Free,ENIG ,OSP
Board Thickness:
0.2-8mm
Copper Thickness:
0.5-8 Oz
Min Drill Hole Diameter:
0.01'',0.25mm.or 10 Mil
Silk Screen Min Line Width:
0.006'' Or 0.15mm
Solder Mask Color:
Green ,Yellow ,Red ,White ,Blue ,Black,Orange
Material:
94v0 FR4
PCB Cutting:
Shear,V-score,Tab-routed
Surface Finish:
HASL Lead Free,ENIG ,OSP
Board Thickness:
0.2-8mm
Copper Thickness:
0.5-8 Oz
Min Drill Hole Diameter:
0.01'',0.25mm.or 10 Mil
Silk Screen Min Line Width:
0.006'' Or 0.15mm
Solder Mask Color:
Green ,Yellow ,Red ,White ,Blue ,Black,Orange
Material:
94v0 FR4
OEM Printed PCBA Circuit Board Assembly HASL Lead Free For Electronic
Product Description



Custom Electronic Printed Circuit Board PCB Assembly Services OEM Multilayer PCBA



Files and Requirment for PCB,PCBA quotation:

  • A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
  • PCB Gerber files.
  • A PCB fabrication drawing and PCBA assembly drawing.
  • Test procedures.
  • Any mechanical restrictions such as assembly height requirements
  • PCB board manufacture and PCBA service:
    • o PCB board made, circuit board parts purchased by us
    • o Electronic testing circuit board or PCBA
    • o Fast delivery, anti-static package
    • o RoHS Directive-compliant, lead-free
    • o One stop service from PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
    • o Eleectronic manufacturing service
  • Detailed terms for PCB assembly:
    • o Technical requirement:
      • § Professional surface-mounting and through-hole soldering technology
      • § Various sizes like 1206, 0805, 0603 components SMT technology
      • § ICT (In Circuit Test), FCT (Functional Circuit Test) technology
      • § PCB assembly with UL, CE, FCC, RoHS approval
      • § Nitrogen gas reflow soldering technology for SMT
      • § High standard SMT and solder assembly line
      • § High density interconnected board placement technology capacity
    • o Quote requirement:
      • § Gerber file and Bom list
      • § Clear pics of pcba or pcba sample for us
      • § Test method for PCBA
    • o PCB specification:
      • § Layer: 1 to 12 layers
      • § Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2, Aluminum etc.
      • § Max. finished thickness: 0.2 to 4.0mm (0.02 ~ 0.25)
      • § Max. finished board side: 500 x 500mm (20 x 20”)
      • § Min. drilled hole size: 0.25mm (10mil)
      • § Min. line width: 0.10mm (4mil)
      • § Min. line spacing: 0.10mm (4mil)
      • § Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
      • § Copper thickness: 0.5 to 3.0 oz
      • § Solder mask color: green/black/white/red/blue
      • § Inner packing: plastic bag
      • § Outer packing: standard carton packing
      • § Hole tolerance: PTH: ±0.076, NTPH: ±0.05
      • § Certificate: UL, ISO 9001, ISO 14001, RoHS,UL
      • § Profiling punching: routing, V-cut, beveling
      • § Providing OEM service to all sorts of printed circuit board assembly
Outer packing standard carton packing
Hole tolerance PTH: ±0.076, NTPH: ±0.05
Profiling punching routing, V-cut, beveling
Layer 1 to 12 layers
finished thickness 0.2 to 4.0mm (0.02 ~ 0.25″)
finished board side 500 x 500mm (20 x 20")
Min. drilled hole size 0.25mm (10mil)
Min. line width 0.10mm (4mil)
Min. line spacing 0.10mm (4mil)
Surface finish/treatment HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
