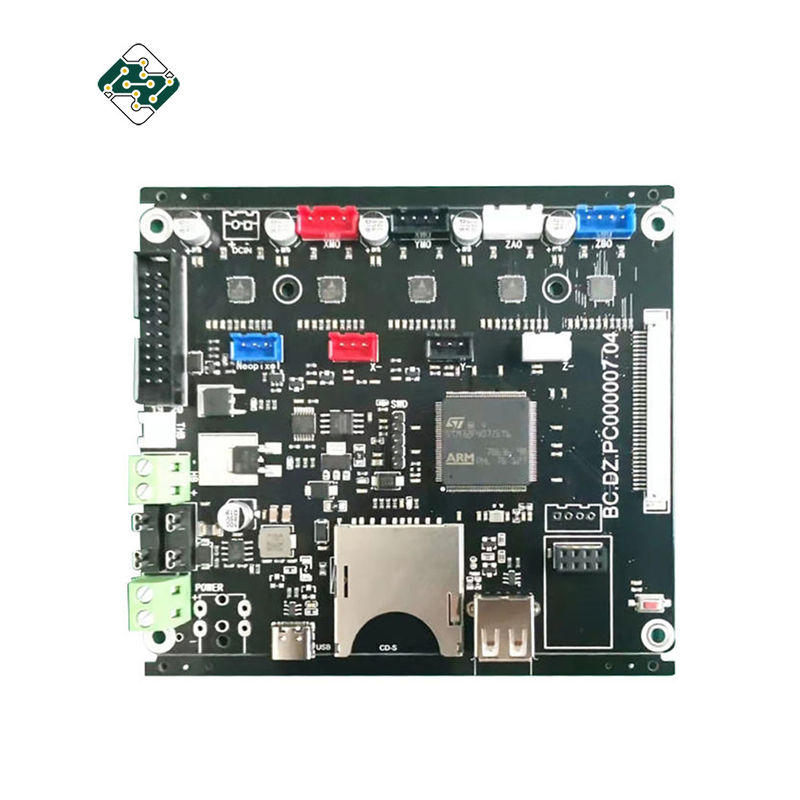

Name: HASL Prototype Electronics PCB Assembly Multipurpose Practical
Brand: OEM Customized
SKU: HKCC2211YH87
Price: 10 USD
Availability: InStock
Rating: 4.9 (154 reviews)

Product Details

Place of Origin: China

Brand Name: OEM Customized

Certification: UL, SGS, RoHS, ISO14001

Model Number: HKCC2211YH87

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: USD10-USD100

Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box

Delivery Time: 20 workdays

Payment Terms: L/C, T/T

Supply Ability: 5000PCS/WEEK

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                HASL Electronics PCB Assembly, Multipurpose Electronics PCB Assembly, Practical Prototype Electronics Assembly


Warp And Twist:	0.7%(semiconductor Test Board ≤.3%)	Finished Surface:	Conventional HASL, Lead-free HASL, Falsh Gold
Base Material:	High TG FR-4 / Rgon/sola//Rogers	Supply Ability:	20000 Square Meters Per Month
Profiling Puching:	V-cut, Rounting	PCBA Test:	X-ray, AOI Test
Solder Type:	Lead-free – RoHS	Twisting And Bending:	≤ 0.75%, Min: 0.5%

Warp And Twist:	0.7%(semiconductor Test Board ≤.3%)
Finished Surface:	Conventional HASL, Lead-free HASL, Falsh Gold
Base Material:	High TG FR-4 / Rgon/sola//Rogers
Supply Ability:	20000 Square Meters Per Month
Profiling Puching:	V-cut, Rounting
PCBA Test:	X-ray, AOI Test
Solder Type:	Lead-free – RoHS
Twisting And Bending:	≤ 0.75%, Min: 0.5%

HASL Prototype Electronics PCB Assembly Multipurpose Practical

Product Description

Support Small Batch Fast Prototype Sample Fabrication 4G WIFI Electronic Components PCBA

Files and Requirment for PCB,PCBA quotation:

A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
A PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements

PCB board manufacture and PCBA service:
- o PCB board made, circuit board parts purchased by us
- o Electronic testing circuit board or PCBA
- o Fast delivery, anti-static package
- o RoHS Directive-compliant, lead-free
- o One stop service from PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
- o Eleectronic manufacturing service
Detailed terms for PCB assembly:
- o Technical requirement:
  - § Professional surface-mounting and through-hole soldering technology
  - § Various sizes like 1206, 0805, 0603 components SMT technology
  - § ICT (In Circuit Test), FCT (Functional Circuit Test) technology
  - § PCB assembly with UL, CE, FCC, RoHS approval
  - § Nitrogen gas reflow soldering technology for SMT
  - § High standard SMT and solder assembly line
  - § High density interconnected board placement technology capacity
- o Quote requirement:
  - § Gerber file and Bom list
  - § Clear pics of pcba or pcba sample for us
  - § Test method for PCBA
- o PCB specification:
  - § Layer: 1 to 12 layers
  - § Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2,Aluminum etc.
  - § Max. finished thickness: 0.2 to 4.0mm (0.02 ~ 0.25″)
  - § Max. finished board side: 500 x 500mm (20 x 20”)
  - § Min. drilled hole size: 0.25mm (10mil)
  - § Min. line width: 0.10mm (4mil)
  - § Min. line spacing: 0.10mm (4mil)
  - § Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
  - § Copper thickness: 0.5 to 3.0 oz
  - § Solder mask color: green/black/white/red/blue
  - § Inner packing: plastic bag
  - § Outer packing: standard carton packing
  - § Hole tolerance: PTH: ±0.076, NTPH: ±0.05
  - § Certificate: UL, ISO 9001, ISO 14001, RoHS,UL
  - § Profiling punching: routing, V-cut, beveling
  - § Providing OEM service to all sorts of printed circuit board assembly

Warp and twist	0.7%(semiconductor test board ≤.3%)
Finished surface	Conventional HASL, Lead-free HASL, Falsh Gold
Base Material	High TG FR-4 / Rgon/sola//Rogers
Supply Ability	20000 Square Meters per Month
Profiling puching	V-cut, rounting
PCBA test	X-ray, AOI Test
Solder Type	Lead-free – RoHS
Twisting and Bending	≤ 0.75%, Min: 0.5%
Range of TG	130 - 215 ℃
Impedance Tolerance	±10%, Min: ± 5%
