Product Details
Place of Origin: China
Brand Name: OEM Customized
Certification: ISO9001/RoHS/ISO14001/ISO13485/TS16949
Model Number: HKCC2303YH208
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD10-USD100
Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 5000PCS/WEEK
PCB SMT Assembly Layers: |
1 Layers To 20 Layer |
Solder Mask Color: |
Blue.green.red.black.white.etc |
Minumum Thickness: |
0.05mm |
PCB SMD Assembly Service Type: |
DIP/SMD Or Mixed SMD & DIP |
Copper Thickness: |
12um,18um,35um,70um |
Stiffener Material Type PI / FR4 / PET / Steel Piece: |
PI / FR4 / PET / Steel Piece |
Etching Tolerance: |
± 0.02mm |
Required Docs For PCBA: |
Gerber File With BOM List & Pick-N-Place File(XYRS) |
PCB SMT Assembly Layers: |
1 Layers To 20 Layer |
Solder Mask Color: |
Blue.green.red.black.white.etc |
Minumum Thickness: |
0.05mm |
PCB SMD Assembly Service Type: |
DIP/SMD Or Mixed SMD & DIP |
Copper Thickness: |
12um,18um,35um,70um |
Stiffener Material Type PI / FR4 / PET / Steel Piece: |
PI / FR4 / PET / Steel Piece |
Etching Tolerance: |
± 0.02mm |
Required Docs For PCBA: |
Gerber File With BOM List & Pick-N-Place File(XYRS) |

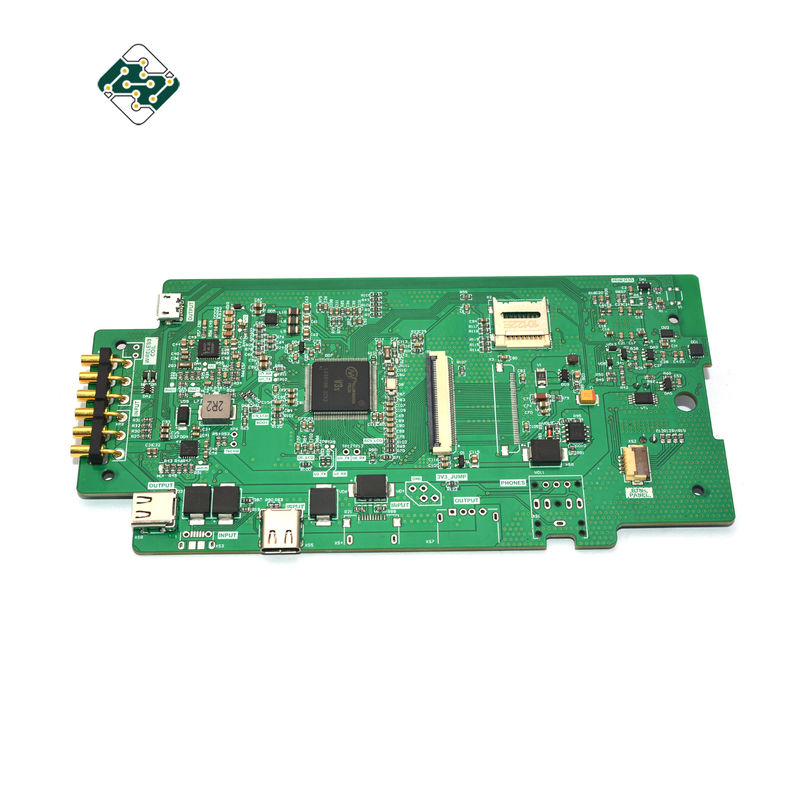

Gerber PCB Board Assembly Copper Thickness 12um 18um 35um 70um
Professional Electronic Components Sourcing Gerber Bom PCB Design PCB Board Assembly
Files and requirment for PCBA quotation
A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
A PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements
PRODUCT PARAMETERS
|
PCB SMT assembly Layers |
1 Layers to 20 layer |
|
Solder mask color |
Blue.green.red.black.white.etc |
|
Minumum Thickness |
0.05mm |
|
PCB SMD Assembly service type |
DIP/SMD or Mixed SMD & DIP |
|
Copper Thickness |
12um,18um,35um,70um |
|
Stiffener material type |
PI / FR4 / PET / Steel piece |
|
Etching tolerance |
± 0.02mm |
|
Minimum Hole Diameter |
0.1mm |
|
Hole tolerance |
PTH: +/- 0.05mm |
|
Required Docs for PCBA |
Gerber file with BOM list & Pick-N-Place File(XYRS) |
PCB board manufacture and PCBA service:
PCB board made, circuit board parts purchased by us
Electronic testing circuit board or PCBA
Fast delivery,anti-static package
RoHC Directive-compliant, lead-free
One stop service from PCB design,PCB layout,PCB manufacture,components purchasing
PCB assembly,test,packing and PCB delivery
Electronic manufacturing service
FAQ:
Q1: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q3. How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5 days to arrive.
