Product Details
Place of Origin: China
Brand Name: OEM Customized
Certification: ISO9001/SGS/CE/ROHS
Model Number: HKCC2303YH245
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD1-USD100
Packaging Details: Inner packing :bubble bag Outer packing :Standard carton box
Delivery Time: 20 workdays
Payment Terms: T/T
Supply Ability: 5000PCS/WEEK
Application: |
Electronic Sensor |
Thicker Copper: |
0.5-6 OZ |
Hole Wall Copper Thickness: |
0.025mm 1mil |
Position Accuracy: |
40um |
Max Component Height: |
25mm |
AU Thickness: |
0.03-1.5um |
Min. Line Spacing: |
3mil |
Application: |
Electronic Sensor |
Thicker Copper: |
0.5-6 OZ |
Hole Wall Copper Thickness: |
0.025mm 1mil |
Position Accuracy: |
40um |
Max Component Height: |
25mm |
AU Thickness: |
0.03-1.5um |
Min. Line Spacing: |
3mil |

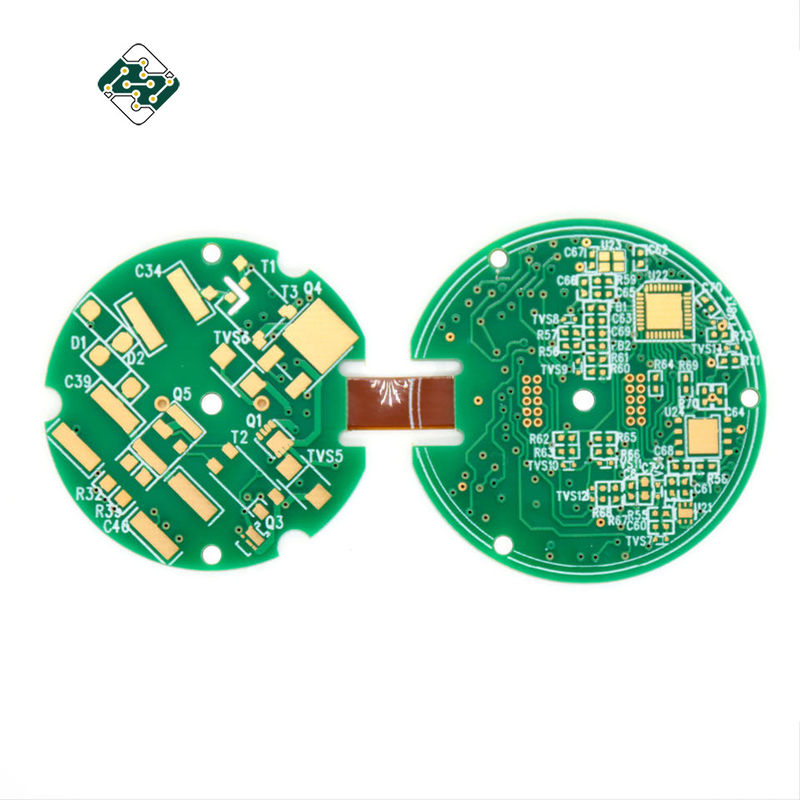

Flexible Circuit Board Multilayer Electronic PCB Fabrics Textiles Testing Rigid-Flex PCB
Files and requirment for PCBA quotation
A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
PCB Gerber files.
A PCB fabrication drawing and PCBA assembly drawing.
Test procedures.
Any mechanical restrictions such as assembly height requirements
PRODUCT PARAMETERS
|
Max Component Height |
25mm |
|
Material |
FR4 + PI + PTFE |
|
Assembly Service |
SMD SMT |
|
Copper Thickness |
0.3oz-3oz |
|
Position accuracy |
40um |
|
Inpendence control tolerance |
±10% |
|
Thicker Copper |
0.5-6 OZ |
|
Min. Line Width |
0.1mm/4mil |
|
AU thickness |
0.03-1.5um |
|
Board Thickness |
0.3mm-6mm |
PCB board manufacture and PCBA service:
PCB board made, circuit board parts purchased by us
Electronic testing circuit board or PCBA
Fast delivery,anti-static package
RoHC Directive-compliant, lead-free
One stop service from PCB design,PCB layout,PCB manufacture,components purchasing
PCB assembly,test,packing and PCB delivery
Electronic manufacturing service
FAQ:
Q1: What service do you have?
A: We can offer one-stop service from PCB manufacturing to PCB assembling, testing,housing and other value-added service.
Q2. What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q3. How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5 days to arrive.
